Modular Platform Base:

Welded pre-fabricated steel base modules mean that there is no need for floor preparation, and adjustable feet compensate for any uneven floors. Welded steel channels form a self-contained track supporting the cabinets and mobiles. Lateral guide channels which accommodate mobile lateral guide wheels act as anti-tilt mechanism for the storage cabinets. Bases can be manufactured to any length and any depth up to 1200mm.

Mobiles:

Welded steel box sections are supported by crowned steel load wheels fitted with ball bearings for ease of movement and the horizontal lateral guide wheels prevent cabinets from tipping. The load wheels are rated to carry 900 kg for a single bay cabinet. Tandem linking kits can be fitted to the base and mobiles, allowing the units to be installed as/or extended to two bay wide units. Units are hand operated.

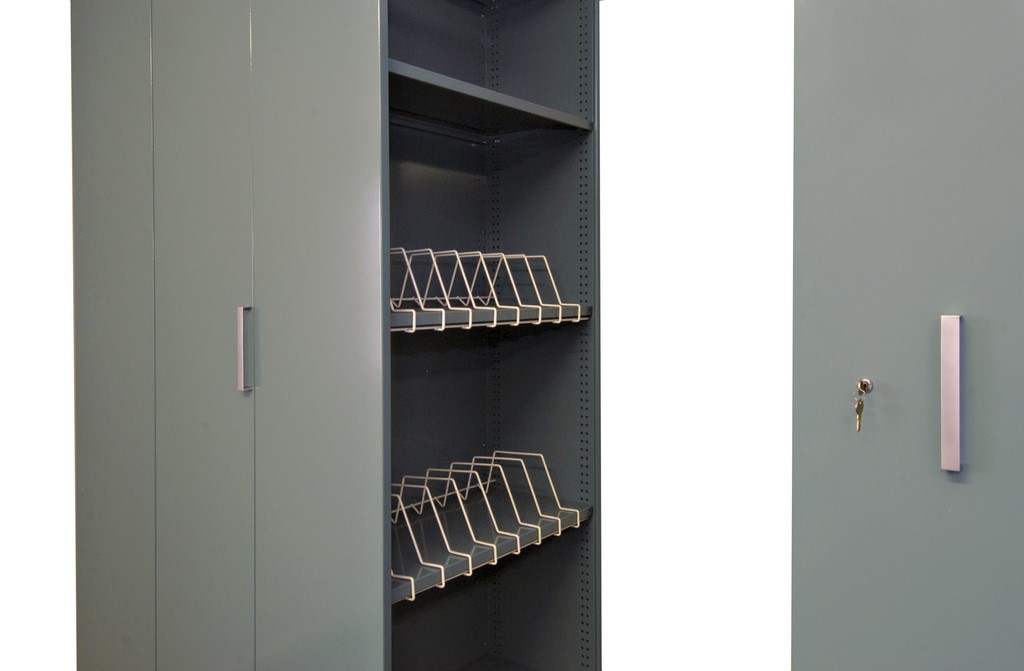

Cabinets:

Flush fitting metal cabinets with internal bolted assembly ensure a quality exterior furniture finish with durable powder coated surfaces as standard. A range of heights, widths, and depths maximize office storage space. There is a 25mm vertical adjustment to ensure storage flexibility and internal space utilization. Standard cabinet overall heights are 2055mm, 2155mm or 2320mm. Shelf depths: 300mm/350mm/400mm/450mm/500mm /600mm.

Locking:

All units are fitted with a standard single-point, internal, key-activated locking mechanism fixing into the platform base.
