Please note: This product requires some assembly

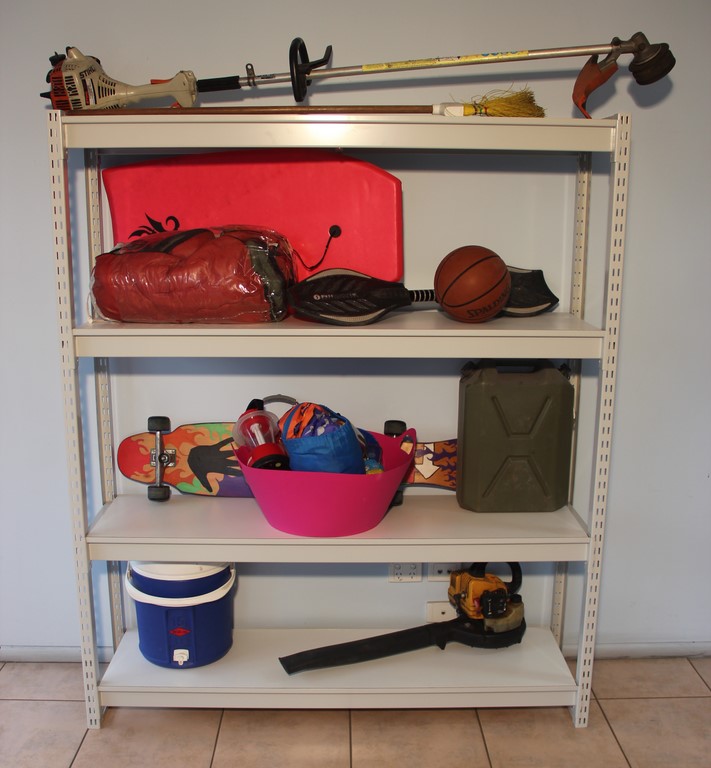

Archive Shelving is an economical medium duty solution for most storage requirements.
The Archive Shelving end frames (45x40x45mm) and beams (20x60x20mm) are made from a steel channel section. This allows the shelving to be an economical alternative while still giving you the storage length and weight loading capacity and offers adjustability to the height of the storage levels. A brace section is secured to the beams on each level which stops the beams from spreading under heavy weight.
A 1.6mm heavy duty steel shelf is also available as an alternative to board.
Archive shelving is a hand loaded and unloaded system. Whilst mechanical devices such as stepped trolleys or elevating order pickers may be useful for gaining access to higher storage levels, the placement of products is a manual process.
Please contact the Keylar Team should you require an alternative colour or size or steel shelves.
Good to Know
Archive Shelving Bay Option
Bay Height: Any height up to 2400mm
Bay Length: Any length up to 2400mm
Bay Depth: Any depth up to 600mm
Shelves: 16mm melamine or heavy duty steel shelves.

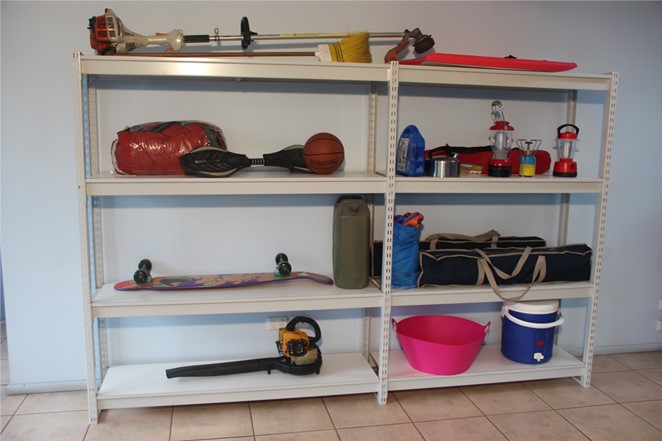

Add-on bays can be added to the starter bay utilising a common end frame.
Shelf Weight Loading: Weight loading will vary depending on the length of the bay.
Indicative Loading: A 1800mm long shelf will carry 390kg with a uniformly distributed load.

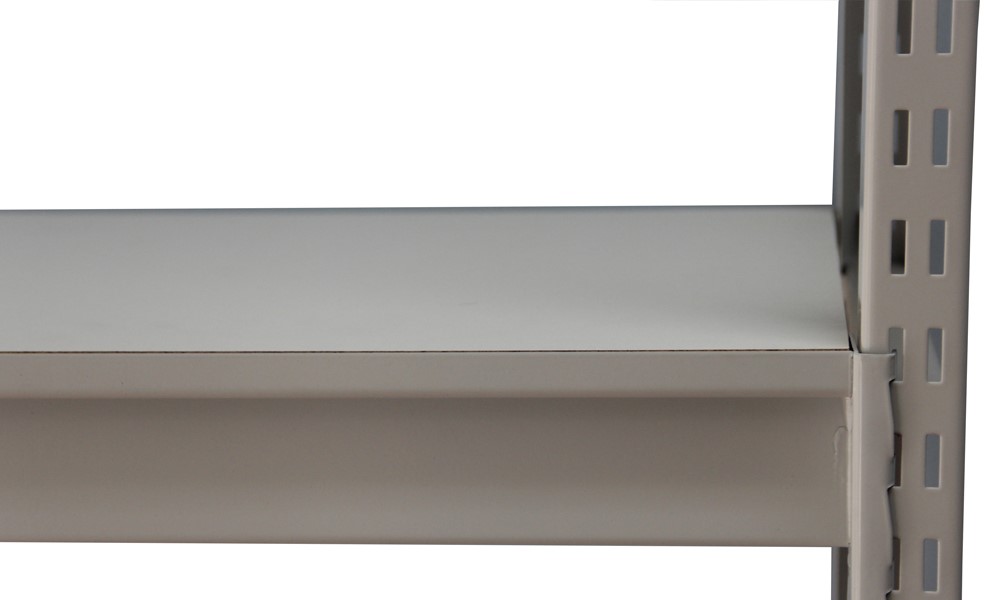

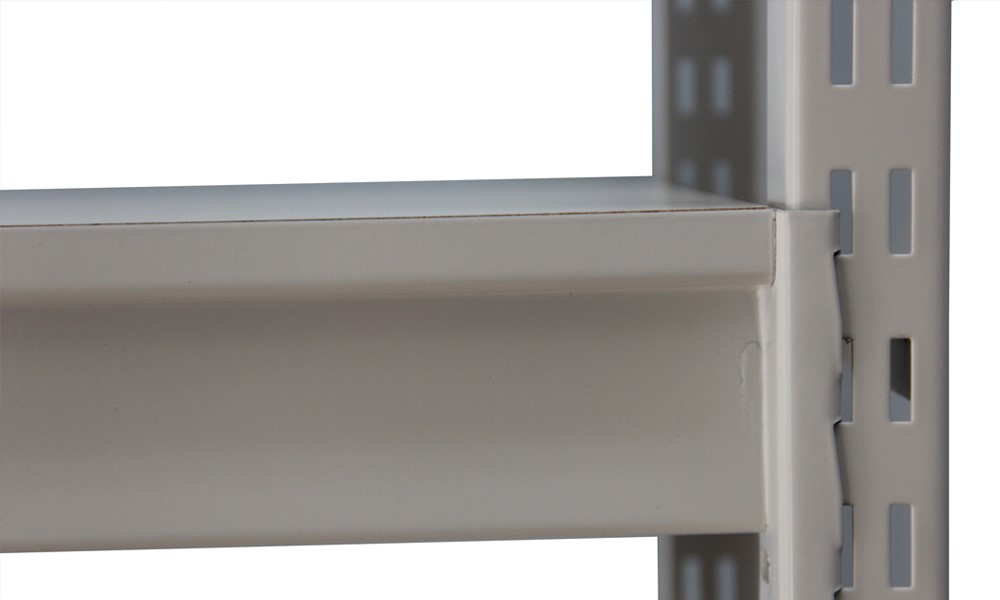

The beams are fully adjustable along the height, simply clip into the end frames to support a timber or 1.6mm thick steel shelf.
- Stand the end frames and clip in one beam at a time starting at the base level of the end frames.
- Clip in the remaining front and rear beams at the desired heights.
- Fix beam brace to each level with supplied nut and bolt at the centre of the beam through the pre drilled hole.
- Lay the boards directly on top of the beams.
- If using steel shelves lay the steel shelf over the top of the beams.
